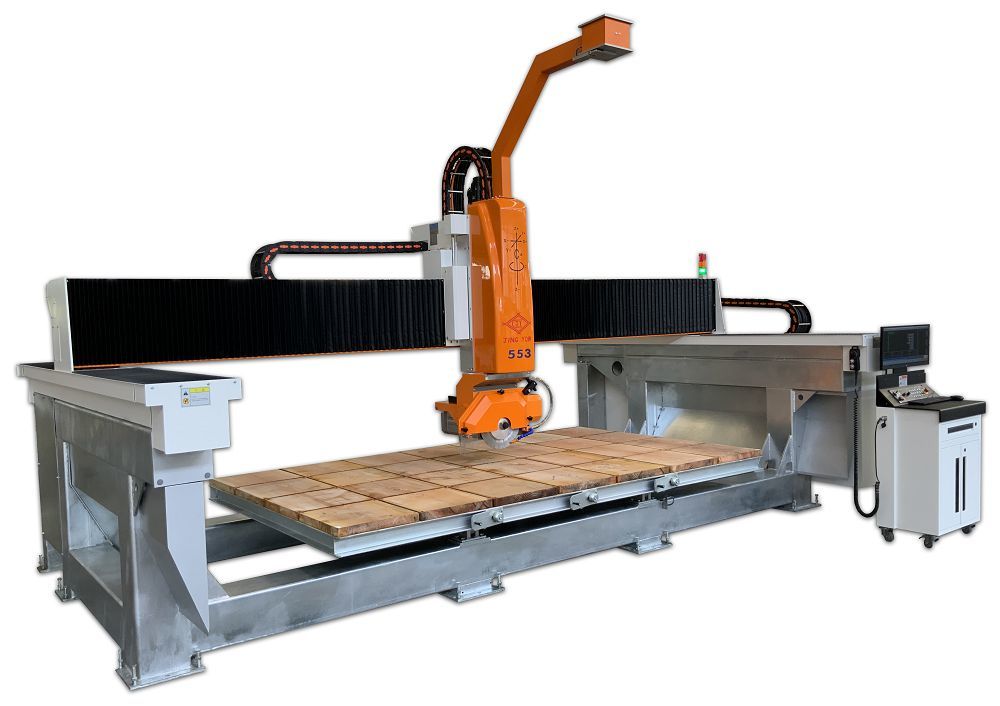

High Configuration  Integrated Sawing Machine (553 CNC 5 Axis)
Model:CJ/CNC-553
5 Axis Sawing Machine can be transverse, longitudinal, arc, ellipse, circle, arbitrary angle cutting, arc line cutting on surface, It cuts according to CAD file imported.
Use ball screw on X, Y, Z axis and drive by screw nut, with high precision, low failure, and easy maintenance.
X, Y, Z axis use precision linear slide guide rail with high positioning accuracy and low friction.
Use automatic refueling control system to refuel in fixed time, for mechanical operation effectively and reduction of failure.
Use double pneumatic cylinders for balance weight to control the Z axis lift and fall, which can reduce mechanical force, prolong lifespan, and improve the speed effectively.
Cutting head can be left/right rotary cutting ±185° and tilt cutting 0-90° .
Water can flow out from center of spindle motor, for reducing tool wear and improving speed of drilling and milling. (Optional)
The spindle motor uses original imported products. The maximum speed is up to 6000rpm.
Install dedicated camera to take photos of slabs. Import them to software, move images and arrange them, for pattern matching and avoiding defects. (Optional)
Use Italian software. It can import CAD file for processing directly, being intelligentized and easy to operate.
With removable handheld controller, it’s easy for tool setting and operation.
Use hot galvanized table and bottom frame for rust protection.

Item

Unit

CJ/CNC-553
Machine dimensions mm 5900×3400×3630
X axis stroke mm 3500
Y axis stroke mm
2460
Z axis stroke mm 300
Spindle motor kw 15
Rotation speed rpm 0-6000
Max speed of X-Y-Z m/min 35-30-15
A axis rotation deg 0-45°
C axis rotation deg ±185°
Blade diameter mm ø300-400
Table size mm
2000×3500
Air pressure bar 4
Water consumption m³/h 3
Total power kw 31
Gross weight kg 4860



Previous
None
Next
High Configuration Integrated Sawing Machine (553F CNC 5 Axis)
The base is a whole structure. welding, hot galvanized, processing, stable and durable, high precision
Easy to learn and use for 29 inch of large screen and Italian software.
Sawing Maching(553 CNC 5 Axis)
Sawing Maching(553 CNC 5 Axis)
Worktable tilts for loading and unloading
Rotary cutting ±185°(1)
Rotary cutting ±185°(2)
Tilt cutting 0-45°(1)
Tilt cutting 0-45°(2)
Dedicaled camera to take photos(Optional)
Finished product
Sawing Maching(553 CNC 5 Axis)
Finished product
Finished product-2
Finished product-1
Finished product-3
